350m Water Well Drill Rig Machine Manufacturer China well drilling water drilling machine

Short Description:

1. Rotation adopts double motor drive , hightorque , small size rotary speed can be adjusted

2. It adopts triple gear pump ,make sure oil pump durable and reliable

3. Combined platform ,nice design , equiped with peda l,easy to operate.

4. It is equiped with clutch ,auxiliary  radiator ,it suits for the area of high altitude ,with cold climate.

5. Travel motor with German technology; high torque and climbing ability ,low failure rate


Product Detail

Product Tags

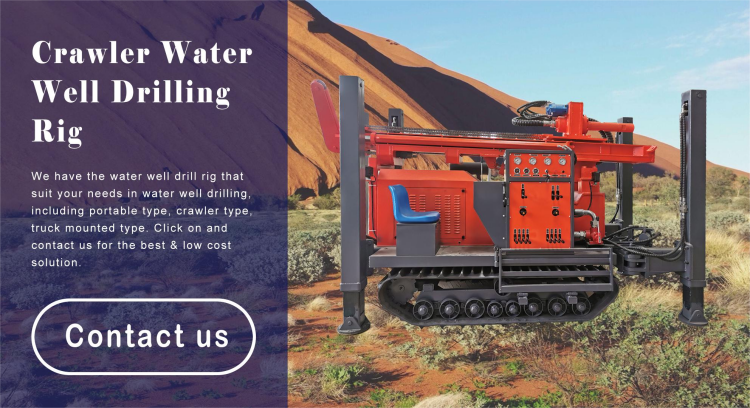

海报履带钻机松科(1)

Product overview

TDS water well drilling rig is a lightweight, efficient, versatile drilling hole equipment, which borehole drilling machine is mainly applied in drilling wells, irrigation wells, geothermal wells and air holes for other purposes, especially for mountain and rock formation water engineering. The water well drilling rig machine can work on different formations, well drilling diameter up to 245mm. The drill machine adopts new hydraulic technology, supporting high torque hydraulic motor rotation and big bore drill hydraulic propulsion, branded multi-cylinder engine-powered two-stage air filter and the intake air compressor designed for hydraulic systems, extend the life of diesel engines. Unique pump design to facilitate maintenance, reduce maintenance costs. Centralized hydraulic control console, easy to operate.

Specification

Model TDS350
Drilling dth 350mm
Dia.hole φ140-325mm
Advance Length one time 6.6m
Air consumption 1.7-3.3MPa
Length of rod 1.5m,2m,3m,6.0m
Dia. Of rod φ89, φ102
Lifting power 24T
Rotation torque 6200-8500N.m
Rotation Speed 55-115r/min
Engine Power 84Kw
Travelling speed 0-2.5 Km/h
Climb capacity 30°
Weight 9T
Dimension 5900x2000x2850mm
Application Complicated geological conditions:Rock,Mud,Sand etc.
Drilling Way Top drive hydraulic rotary and propulsion,Dth Drilling or Mud Pump Driling

详情1(1)(1)

详情3(1)

详情4(1)

详情2(1)

Appllication

微信截图_20210512110721

               Geological exploration                                                                           Water well drilling rig

Packing

packing

名片

达尔斯特详情页_07

photobank (2)

photobank (3)

达尔斯特详情页_10

photobank (3)
