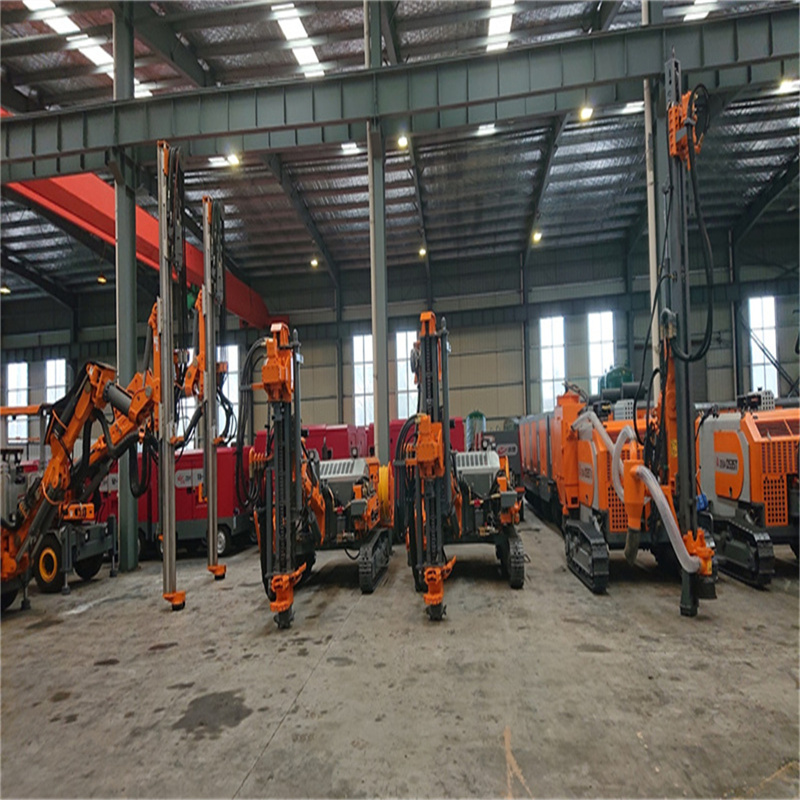

Blast hole dth pneumatic mine drilling rig machine

Short Description:

DTH drilling rig is hydraulically driven to perform travelling, propelling, rotation and angle adjustment with strong power; relying on high pressure pneumatic impact, it is efficient in drilling rock; it is equipped with hydraulic dry dust collector to collect dust and reduce pollution to the environment.

KG9 surface DTH drilling rig also equipped with linear rod loading and unloading system, float joint and automatic oil sprayer (for protecting rod thread), air-conditioned cab (providing comfortable working environment), automatic control and anti-sticking prevention system (reducing probability of sticking). This DTH drilling rig is featured by high automation, energy saving and high efficiency, comfort and environmental protection, easy operation and safe travelling.

Message Email

Product Detail

Product Tags

DTH drilling can be performed in almost any rock drill-ability category. It is a common drilling equipment in the natural gas extraction, mineral extraction,drilling water wells, construction, creating oil wells.

DTH drilling rigs can be equipped with diesel or electric motors according to different working conditions. During the rock drilling process, the impactor sneaks into the borehole, which can reduce the energy loss caused by the impact of the drill rod, thereby reducing the influence of the drilling depth on the borehole.

Rig model	ZGYX-453
Power	YUCHAI
Rated power	230KW
Drilling depth	30m
Drill pipe size	Φ76*3000MM
Drill pipe storage	7+1
Hole range	Φ90-138mm
Rotation torque	2800N.M
F.A.D	16M3/MIN
Working pressure	17bar
Pull up force	31KN
Track frame oscilation	10 degree
Tramming speed	3KW/H
Gradient	30 degree
Weight	15000KG
Size	900023003000MM
