Deep well trailer drilling rig boring machine for sale price

Short Description:

We design reliable, low-maintenance and powerful drilling rigs that consistently outperform the competition. Our water well drilling rigs easily maneuver in and out of job sites with these compact, all-wheel-drive rigs.

All TDS-Drill water well drill rigs are equipped with our patented direct-drive hydraulic feed system. That means no cables or chains to adjust. It means no expensive maintenance. It means better safety for you and your team.


Product Detail

Product Tags

Product overview

TDS’s water well drilling rigs are designed for safety, reliability, and productivity with products to serve all of  your drilling needs. Epiroc has a rich history in the water

well drilling rig market that spans over 50 years and counting. As water is our most precious resource and the global demand for water increasing each year, Epiroc

takes pride in offering solutions to meet this growing demand. We have a complete line of hydraulic top-head drive drilling rigs, designed for water well drilling and

other applications requiring air or mud rotary as well as down-the-hole hammer drilling methods.



Our drills provide ample power and versatility to reach target drilling depths in all types for soil conditions and rock formations. Additionally, our rigs are highly mobile,

capable of reaching the most remote locations.TDS’s water well rigs come in a full range of pullback (hosting) capability and feature safe and efficient rod handling with

some products offering optional hands-free rod loader systems. The rigs are also capable of pulldown for drilling in those more challenging formations. Optional features

such as water injection systems, hammer lubricators, mud systems, auxiliary winches, etc. offer flexibility when configuring a rig.  We also have the capability to design

custom options to better serve the need of our customers.



Innovation is one of our core values and we strive to deliver innovative solutions for our customers that bring value to their operations. With reduced downtime,

fuel efficiency, and by providing a safer work environment, Epiroc’s water well drilling rigs help customers grow and sustain their businesses.

Specification

Model   TDS-SL1000S
Drilling Diameter   105-800 mm
Drilling Depth 1000 m
Continuous working time   12 hours
Working Air Pressure 1.6-8 Mpa
Air Consumption   16-96 m³/min
Drill pipe length   6 m
Drill pipe diameter   114 mm
Axial pressure   8 T
Lifting force   52 T
Fast lifting speed   30 m/min
Fast feeding speed   61 m/min
Max rotary torque   20000/10000 Nm
Max rotary speed   70/140 r/min
Jacks stroke   1.7 m
Drilling efficiency   10-35 m/h
Driving speed   5 Km/h
Uphill angle 21°
Weight of drilling rig   17.5 T
Working condition   Loose layer and bedrock
Drilling methods   Top drive hydraulic rotation and propulsion, down-the-hole impactor or mud drilling

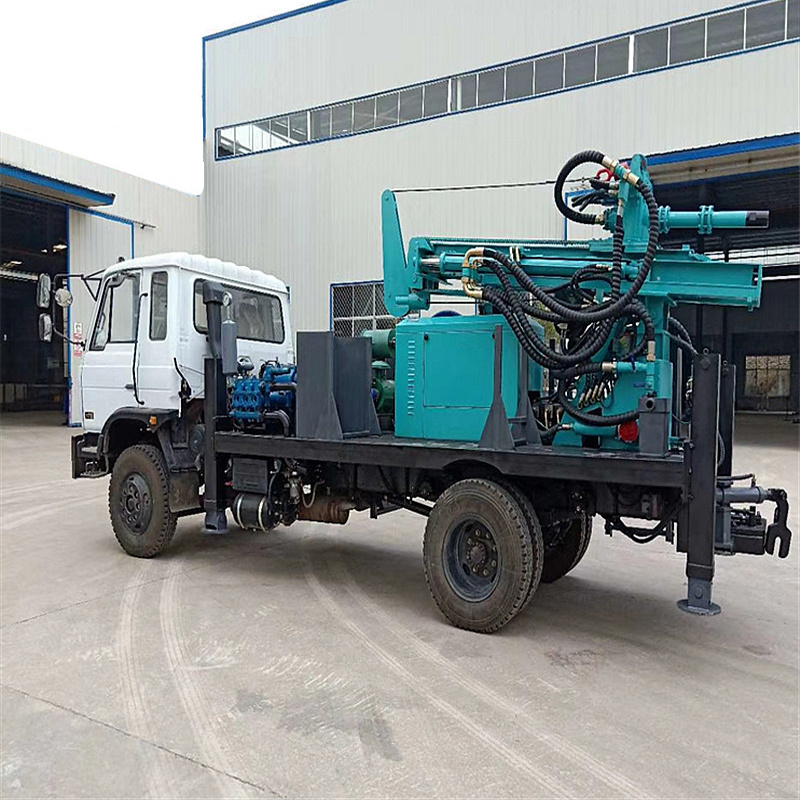

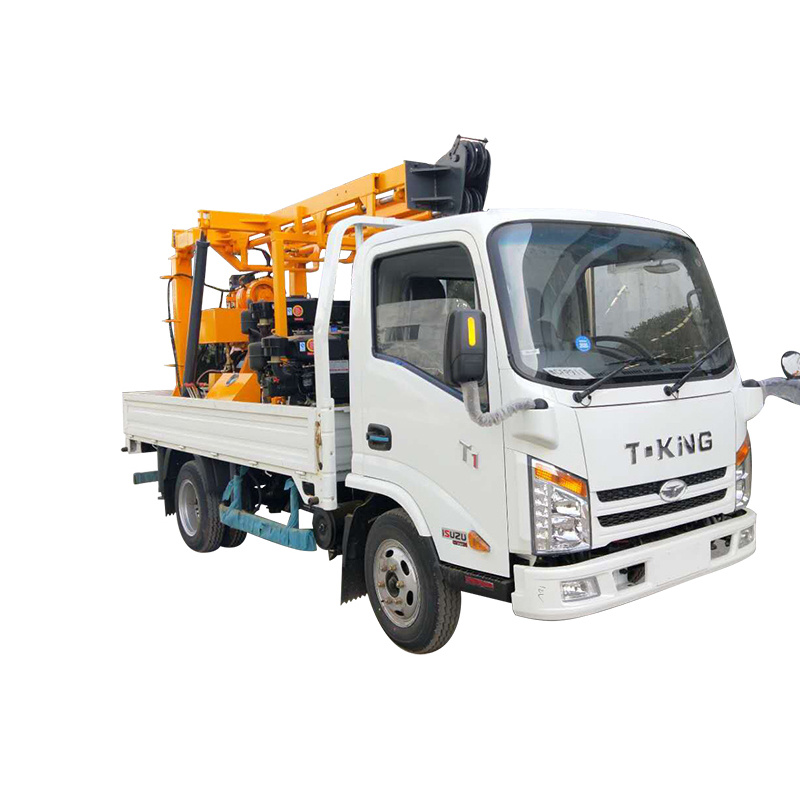

truck rigs 8 truck rigs 20达尔斯特详情页_07达尔斯特详情页_10
