Dth Drill Machine Rig Manufacturer Factory Price

Short Description:

TDS DTH drilling can be performed in almost any rock drill-ability category. It is a common drilling equipment in the natural gas extraction, mineral extraction,drilling water wells, construction, creating oil wells.
DTH drilling rigs can be equipped with diesel or electric motors according to different working conditions. During the rock
drilling process, the impactor sneaks into the borehole, which can reduce the energy loss caused by the impact of the drill rod, thereby reducing the influence of the drilling depth on the borehole.

Message Email

Product Detail

Product Tags

Crawler Drill, also known as Blast Hole Drill Rig or Crawler Drilling Rig (in some regions it may be called Wagon Drill or Drill Wagon), is broadly used in the industries of mining, quarry & construction.

It is primarily used to drill holes on surface or do “drill & blast” tunneling tasks through solid rocks. Under the guidance of a geologist, the drill rig operator can drill blast holes up to 100 feet deep or more at exact coordinates to accept explosive charges.

Usually speaking, the blast holes’ diameter is ranging from 80-140mm and 20m deep hole is workable for blasting. While operating, the crawler drill works with a separated air compressor or built-in one.

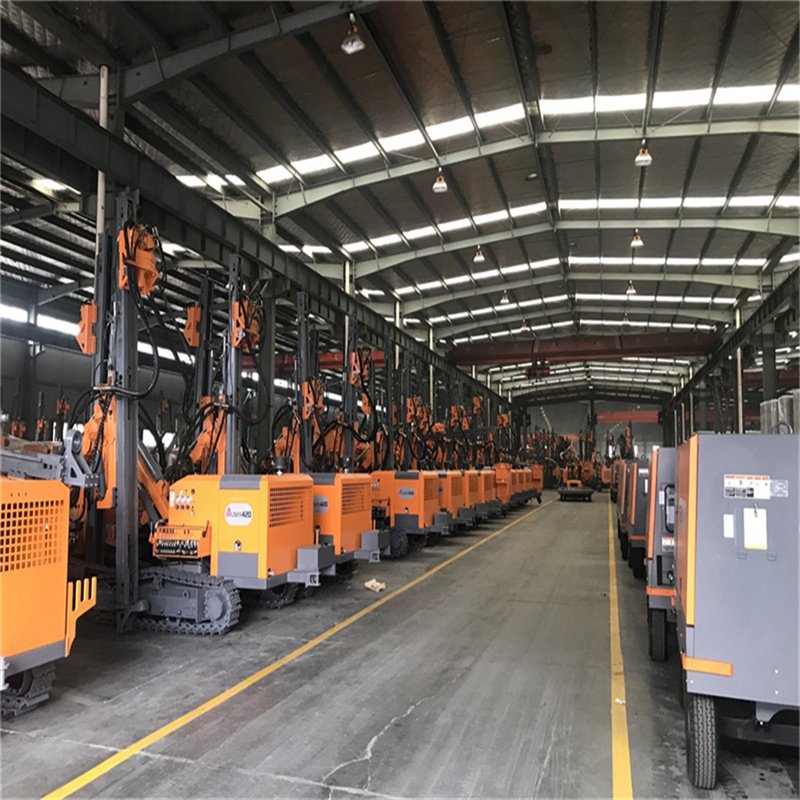

Rig model	ZGYX-420
Power	YUCHAI
Rated power	58KW
Drilling depth	30m
Drill pipe size	Φ76*3000MM
Hole range	Φ110-138mm
Rotation torque	2500N.M
Rotation speed	0-100RPM
Working pressure	0.7-2.5MPA
Feed force	20KN
Pull up force	45KN
Feed type	CHAIN/CYLINDER
Tramming speed	3KW/H
Gradient	25
Weight	5200KG
Size	510022602500MM
