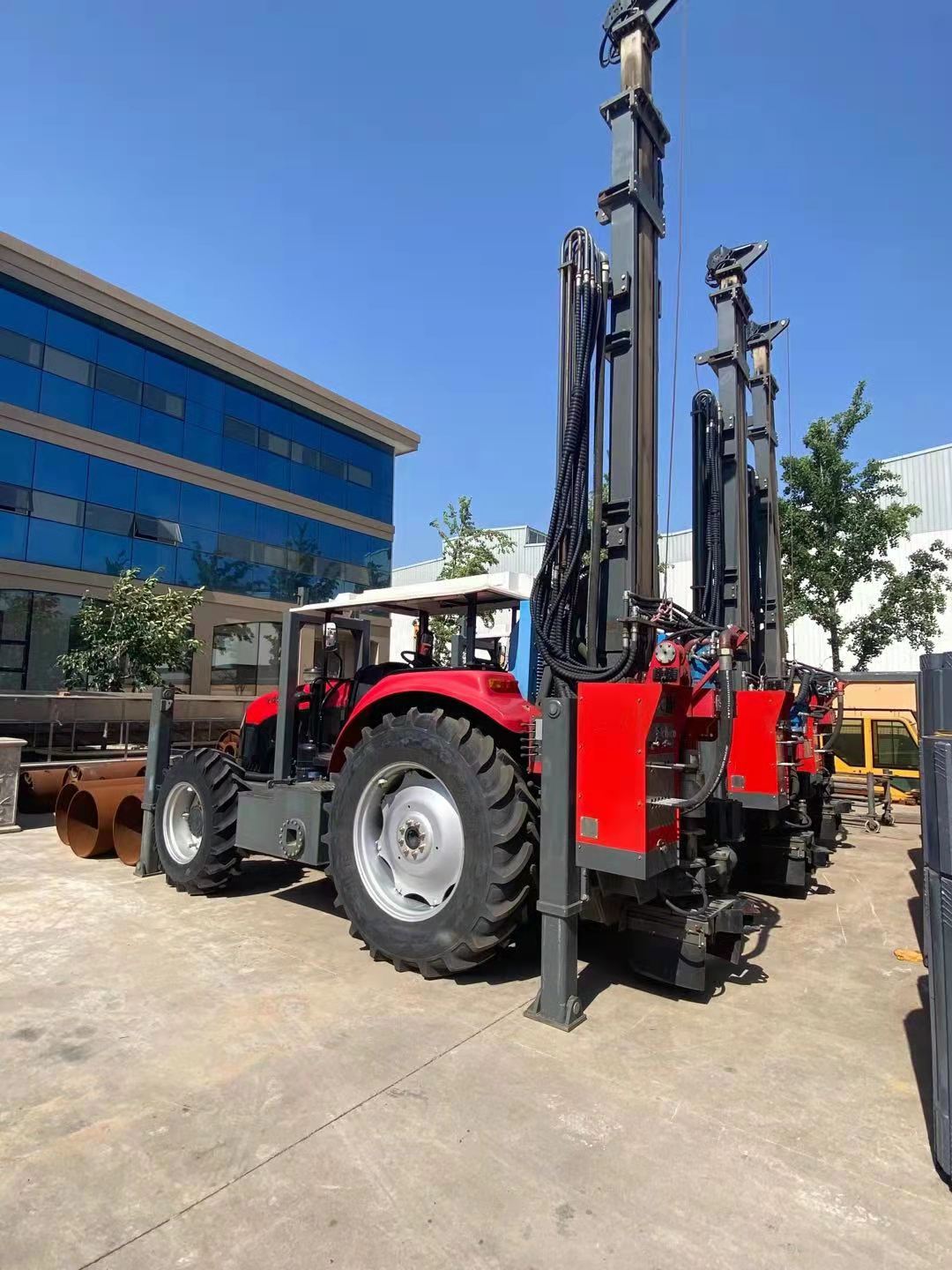

Tractor mounted water well drill rig from China

Model number: TDS-220

Power of tractor:120HP

Brand of tractor:YTO group
Max drilling diameter:250mm
Max drilling depth:220m
Working Air Pressure:2.5Mpa
Diameter of Drill Pipe:Φ89mmΦ102mm
Length of Drill Pipe:3.0 m
Walking speed:40km/h
Max.Lifting Force:16T
Slewing Speed:40-80rpm
Rotary Torque:7500N.m
Size:6500*2150*2700mm
